Welded Open End Pile Shoe
Open Pile Shoe.webp
Open Pile Tip.webp
Open-end Pile Point.webp
Pipe Pile.webp

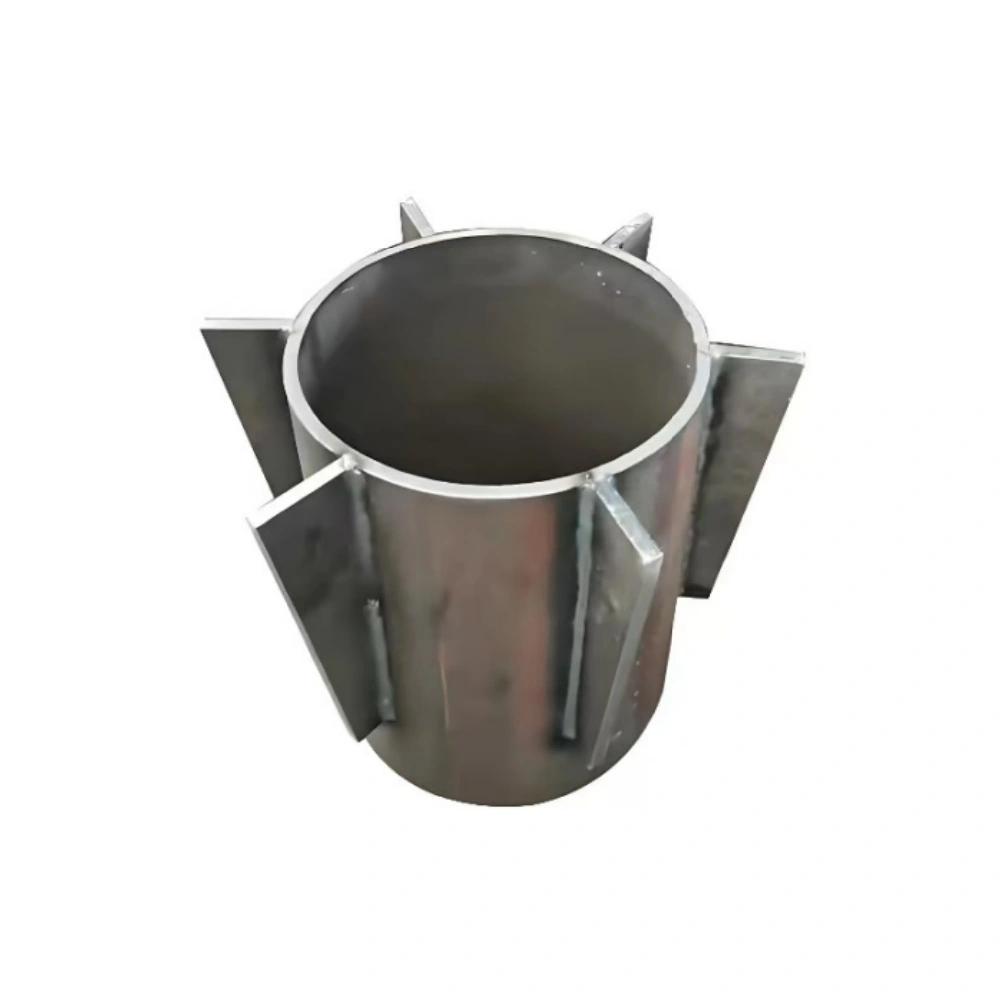

Welded Open End Pile Shoe

Our welded open end pile shoe is a high-performance piling accessory designed for PHC and prestressed concrete pipe piles. Made from high-strength carbon steel with professional welding, it ensures a secure connection and reliable performance for pipe pile foundation work. As a factory-direct supplier, we provide customizable solutions to meet the needs of construction contractors worldwide.

    Contact us
    product details

    Product Core Parameters
    Parameter Details
    Produt Name Open End Pile Shoe (Pipe Pile Tip)
    Material Q235B, Q355B (optional)
    Available Sizes (Outer Diameter) 300mm, 400mm, 500mm, 600mm (custom sizes available for large projects)
    Application House construction, bridge, viaduct, industrial workshop, road construction, high-rise building foundation, etc.
    Processing Technology Precision cutting, integrated welding, surface anti-rust treatment (galvanizing or painting optional)
    Installation Method Welded to the end plate of the pipe pile before piling, easy to operate on construction site

    Product Description

    Engineered to meet international construction standards, our welded open end pile shoe fits perfectly with PHC pipe piles and prestressed concrete pipe piles in various foundation projects. We use high-quality Q235/Q355 carbon steel, with strict control over thickness (8-20mm) and dimensional accuracy to ensure strong structural stability and impact resistance.

    Our welding process follows the AWS D1.1 standard, utilizing automatic welding technology to ensure uniform, crack-free weld seams with no pores. Each pile shoe undergoes strict ultrasonic testing and visual inspection to guarantee weld integrity, preventing detachment during pile driving and ensuring safety even in complex geological conditions like soft soil, clay, and sand.

    Its open-end design allows soil to enter the pipe pile smoothly, significantly reducing driving resistance and protecting the pile end from cracking or deformation. This design boosts construction efficiency while safeguarding PHC pipe piles, spun concrete pipe piles, and other precast pile types.

    It is perfectly compatible with PHC pipe piles of 300mm-800mm in diameter, including common models like PHC500 and PHC600. We also offer custom production based on your drawings, dimensions and project needs, fully adapting to your specific foundation requirements. All products are anti-rust treated before delivery, ensuring long service life in outdoor and harsh construction conditions.

    Key Features & Advantages
        • • Premium Carbon Steel Material:
          Made of high-strength Q235/Q355 carbon steel, tensile strength ≥375MPa, with excellent compression resistance and impact resistance, suitable for long-term use in complex construction environments.

          • Professional Welding Technology:
          Automatic welding meets AWS D1.1 standards, ensuring strong, secure welds that resist detachment—minimizing construction risks and enabling quick, easy installation.

          • Open End Design:
          The streamlined open-end structure reduces soil resistance during pile driving, improves construction efficiency, and protects the pipe pile end from damage.

          • Perfect Compatibility:
          Precisely matched with PHC pipe piles and prestressed concrete pipe piles, supporting standard sizes and customized dimensions to meet different project needs.

          • Strict Quality Control:
          Every pile shoe undergoes dimensional checks, welding tests, and anti-rust treatment—ensuring 100% qualification before delivery and compliance with international construction standards.

          • Cost-Effective Factory Direct Supply:
          No middlemen, competitive wholesale price, support bulk orders and on-time delivery for large-scale foundation projects.

          • Durable & Corrosion-Resistant:
          Professional anti-rust surface treatment, suitable for outdoor long-term use, adapting to various harsh construction conditions.

        Application Fields

        Our pipe pile tip is a core foundation piling embedded part, widely used in various civil engineering and construction fields, covering almost all scenarios that require pile foundation support.

        ✅ Residential Construction:  High-rise residential buildings, villas, affordable housing, etc.
        ✅ Bridge Engineering:  Highway bridges, railway bridges, cross-river bridges, etc.

        ✅ Viaduct & Road Construction:  Viaduct piers, road subgrade reinforcement, interchange ramps, etc.

        ✅ Industrial Construction:  Industrial workshops, warehouses, factory buildings, especially heavy industrial plants that need to bear large equipment weight

        ✅ Other Projects:  Municipal engineering, port terminals, high-speed rail stations, airport runways and other large-scale infrastructure projects

        Construction Notes

        1. Before installation, check whether the size of the cross pile point (pipe pile tip) matches the pipe pile, and confirm that there is no deformation, rust or welding defects on the surface of this foundation piling embedded part.
        2. When welding, ensure that the welding seam is full and firm, and there is no porosity, slag inclusion or other defects to avoid affecting the connection strength.
        3. For Q355B material cross pile points (pipe pile tips), if the plate thickness exceeds 20mm, preheating treatment is required before welding to ensure the welding quality of this foundation piling embedded part.
        4. After installation, check the verticality of the pipe pile and the cross pile point (pipe pile tip) to ensure that the piling process is smooth and avoid deviation for this foundation piling embedded part.
        5. During transportation and storage, avoid collision and corrosion of the cross pile point (pipe pile tip), and place this foundation piling embedded part in a dry and ventilated place.

        Related Industry Resources

        For more professional knowledge about foundation piling engineering and construction standards related to pipe pile tip use, you can refer to the official guidelines of China Construction Standard Specification Network​​​​​, which provides detailed construction specifications and technical guidance for foundation engineering, helping you improve the quality and safety of the project.

        Get Started with Your Custom Welding Parts Project

        123.png Requirement Consultation: Provide drawings (CAD/DXF) or samples, specify material, size, tolerance, quantity, and surface treatment needs;

        123.png Quotation & Proposal: Process plan and quotation within 2 hours, including material recommendations, lead time, and cost details;

        123.png Production & Delivery: Start production upon confirmation, real-time progress updates, nationwide free shipping, and on-site inspection available.

        If you need a high-quality welded open end pile shoe for your PHC pipe pile foundation project, contact us today. We’ll provide a free quotation, product specifications, welding process details and customized solutions to help you complete your foundation projects smoothly.

        Request a quote
        image image
        image image image
